智能伺服電流控扭手按式X2
伺服電機、自由編程、LED提示燈、錯誤提示、鎖附參數、簡易安裝
立即咨詢
技術參數
| 型號 | 扭力范圍 | 空載轉速 | 輸入電壓 | 重量 | 標準批頭 | |
| 手按式 | Kgf.cm | N.m | ||||
| SD-NC08L-AC-X2 | 0.1-0.8 | 0.01-0.08 | 50-1200r.p.m | 48V | 260g | Φ4mm |

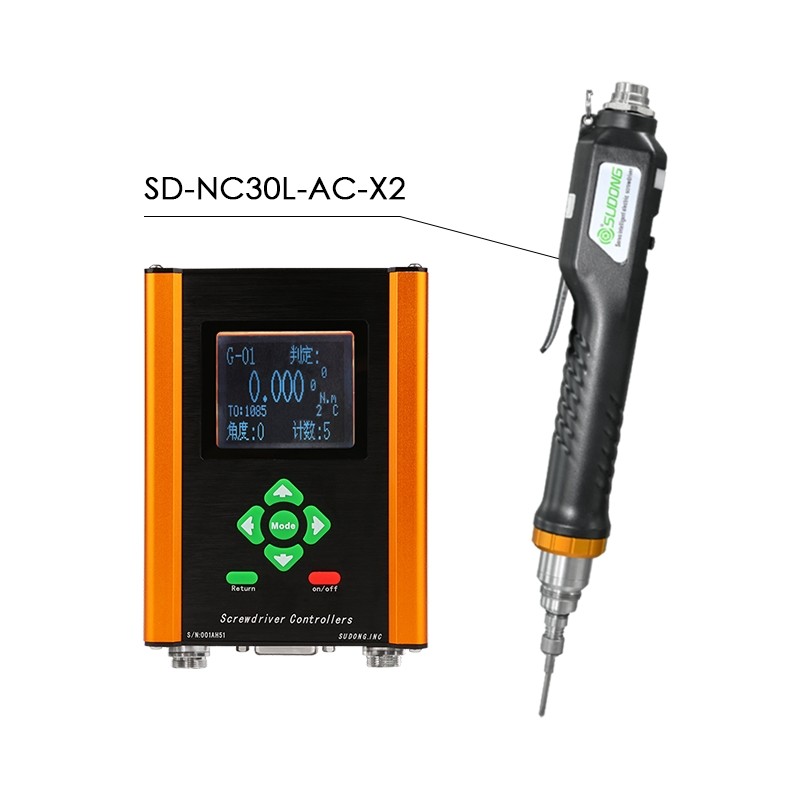

| SD-NC30L-AC-X2 | 0.1-3 | 0.01-0.3 | 50-2000r.p.m | Φ4mm | ||
| SD-NC60L-AC-X2 | 0.5-6 | 0.05-0.6 | 50-1200r.p.m | Φ4mm | ||
| SD-NC120L-AD-X2 | 1-12 | 0.1-1.2 | 50-1200r.p.m | 430g | Φ5mm | |

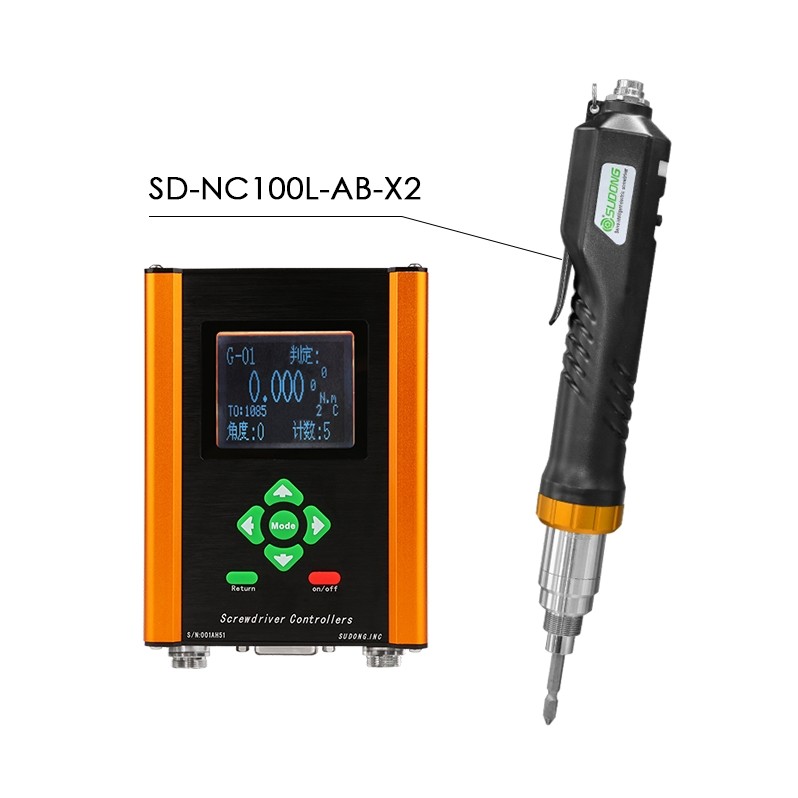

| SD-NC100L-AB-X2 | 1-10 | 0.1-1 | 50-2000r.p.m | 780g | 1/4-Hex | |
| SD-NC200L-AB-X2 | 2-20 | 0.2-2 | 50-1600r.p.m | 1/4-Hex | ||
| SD-NC350L-AB-X2 | 5-35 | 0.5-3.5 | 50-800r.p.m | 1/4-Hex | ||
| SD-NC500L-AB-X2 | 5-50 | 0.5-5 | 50-500r.p.m | 1/4-Hex | ||
| SD-NC700L-AB-X2 | 10-70 | 1-7 | 50-1000r.p.m | 1200g | 1/4-Hex | |

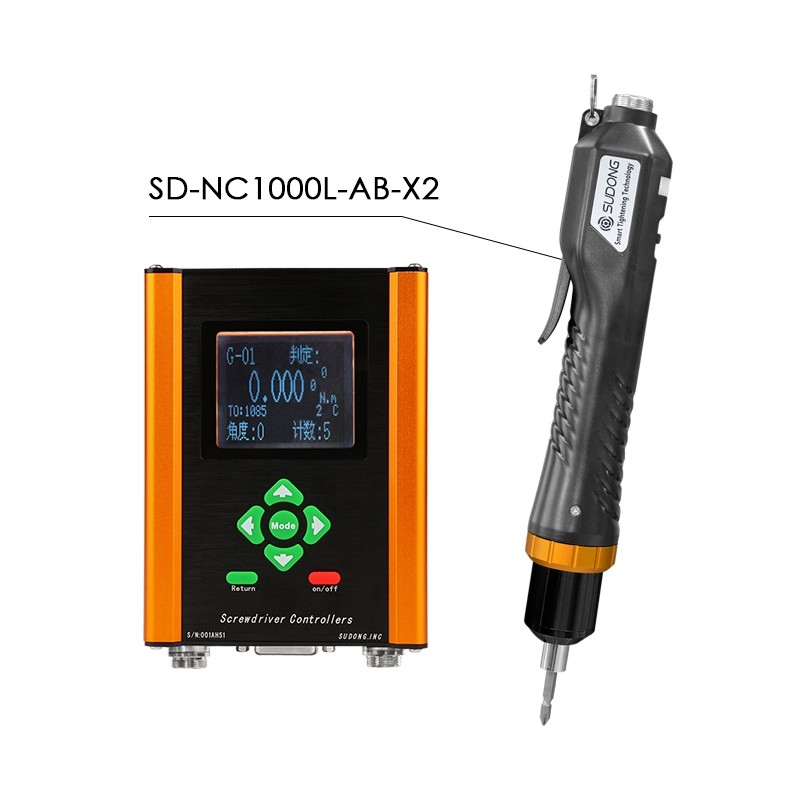

| SD-NC1000L-AB-X2 | 20-100 | 2-10 | 50-1000r.p.m | 1/4-Hex | ||
| SD-NC1500L-AB-X2 | 30-150 | 3-15 | 50-800r.p.m | 1/4-Hex | ||
| SD-NC2500L-AB-X2 | 50-250 | 5-25 | 50-500r.p.m | 1300g | 1/4-Hex | |

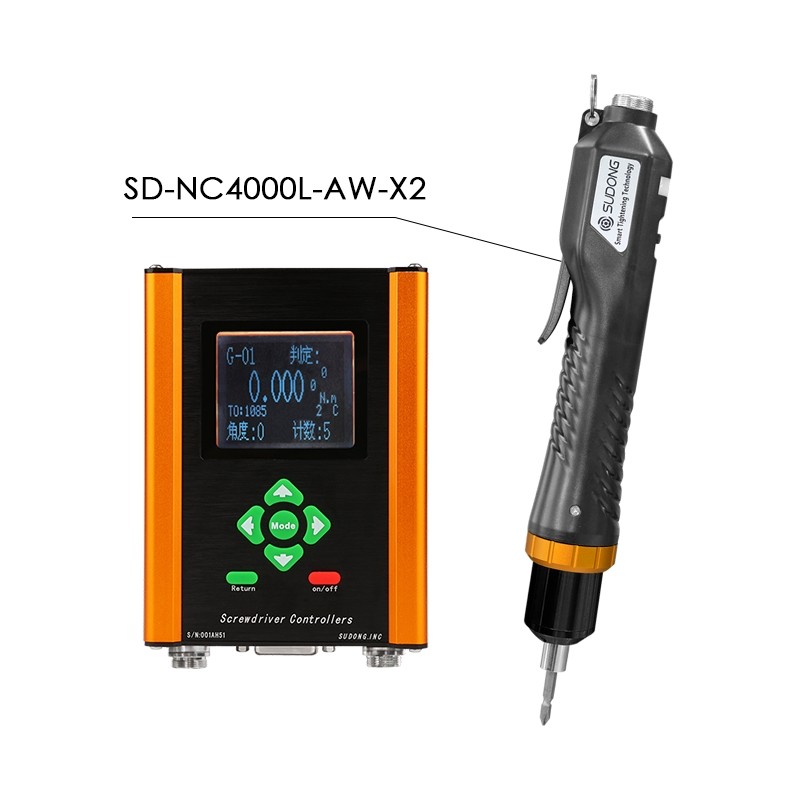

| SD-NC4000L-AW-X2 | 90-400 | 9-40 | 50-300r.p.m | 3/8-Hex | ||
| SD-NC6500L-AW-X2 | 130-650 | 13-65 | 50-200r.p.m | 3/8-Hex | ||
 | ||||||
外觀尺寸
| 型號 | A | B | C | D | E | F |
SD-NC08L-AC-X2 SD-NC30L-AC-X2 SD-NC60L-AC-X2 | 227 | 28 | 22.5 | M18 | 5.5 | 36.5 |
| SD-N120L-AD-X2 | 264 | 34 | 26.5 | M20 | 8.5 | 34.5 |
SD-NC100L-AB-X2 SD-NC200L-AB-X2 SD-NC350L-AB-X2 SD-NC500L-AB-X2 | 300 | 40 | 32 | M20 | 16 | 48 |
SD-NC700L-AB-X2 SD-NC1000L-AB-X2 SD-NC1500L-AB-X2 SD-NC2500L-AB-X2 | 312 | 45 | 39 | — | 29 | 54 |
SD-NC4000L-AW-X2 SD-NC6500L-AW-X2 | 318 | 35 | 60 |
